Description
The SIM7670E is a versatile wireless module designed for global connectivity. It supports multiple frequency bands across LTE, WCDMA, GSM and GPRS, offering reliable performance in diverse environments. Its compact LCC+LGA form factor and wide operating temperature range make it suitable for a variety of IoT and M2M applications.
The module is compatible with SIM7000/SIM7070 series (NB/Cat M) and SIM800A/SIM800F series (2G), enabling smooth migration from 2G/NB/Cat M to LTE Cat 1 and greatly facilitating more compatible product design for different customer needs.
Additional Information
- Brand: SIMCom

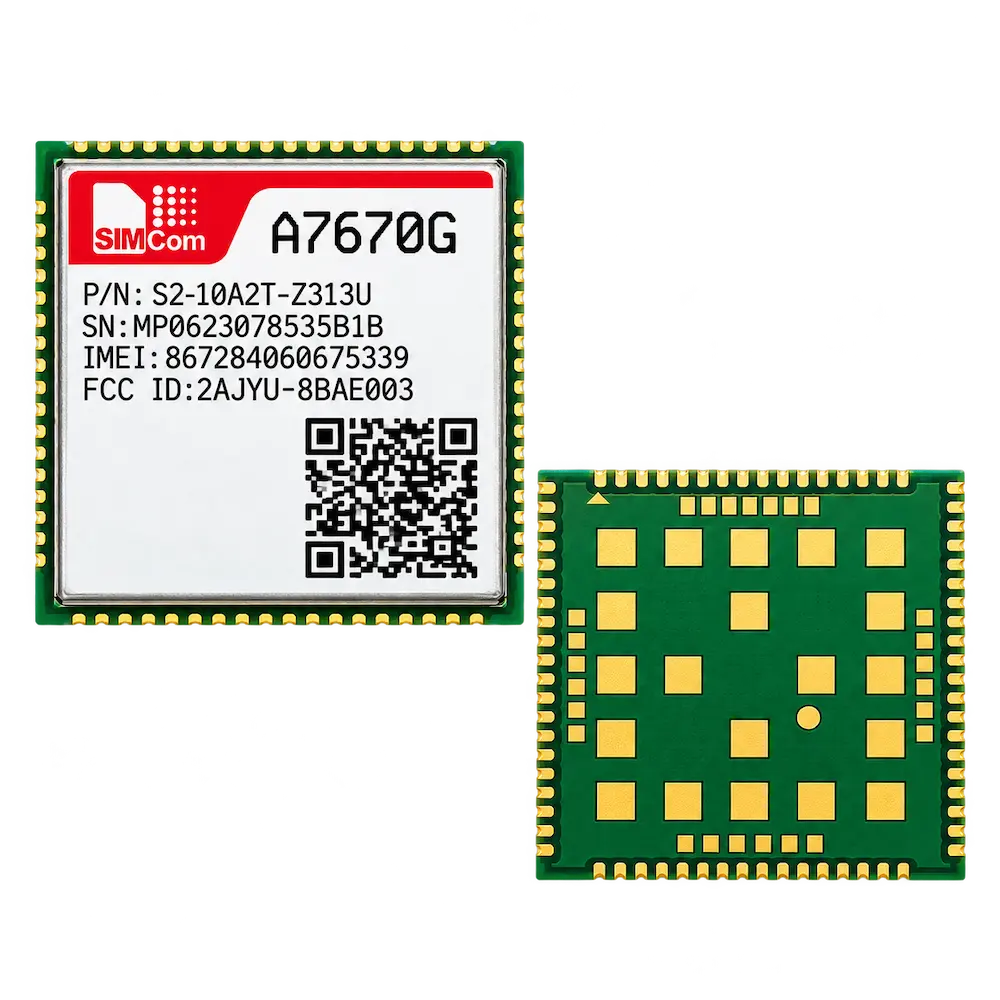

- Model: A7670E /A7670G
- Network Standard: LTE Cat 1
- Network Mode: LTE‑FDD, GSM, GPRS, EDGE
- Downlink Rate: Max 10 Mbps
- Uplink Rate: Max 5 Mbps
- Package: LCC+LGA
- Dimension: 24mm × 24mm × 2.4mm
- BLE: Supported*
- GNSS: Supported*
- Software Feature: FOTA, LBS, SSL
- Interfaces: UART, USB, I2C, GPIO
- OS Driver Support: Windows, Linux, Android
- Compatibility: Pin‑to‑pin compatible with SIM7000, SIM7070, SIM800 series
- Typical Application: Telematics, POS, Surveillance device, Industrial router, Remote diagnostics, IoT
- Note: *BLE & GNSS are optional functions.
