Industrial Modems

BGS2

01 — 2G GSM/GPRS Connectivity
Supports dual-band or quad-band GSM networks with GPRS Class 10 data transmission.

02 — Industrial RS232 Interface
Enables reliable serial communication with industrial controllers and M2M devices.

03 — Wide Voltage Input
Supports 8–30V DC power supply for industrial applications.

04 — TCP/IP Support
Integrated TCP/IP stack with standard AT command control.

05 — Wide Temperature Range
Normal operating temperature from -30°C to +85°C.

06 — Compact Industrial Design
Compact 80 × 55 × 23 mm housing with flexible mounting options.

Request a Quote

Important Attributes

Model Series	BGS2T‑E, BGS2T‑W, BGS2‑W, BGS2‑E, BGS2‑4G‑A7672G, BGS2‑SIM7070G
Module Manufacturer	Cinterion
Main Interface	V.24 / V.28 RS‑232 (D‑sub 9‑pin female socket)
Optional Interface	RS‑485 (6‑pin header, for BGS2T RS485 version)
SIM Card Slot	Mini‑SIM, 1.8 V / 3.0 V
Antenna Connector	SMA female
Supply Voltage	8‑30 V DC
Dimension	80 × 55 × 23 mm (excluding connectors)
Weight	65 g
Normal Operating Temperature	‑30 ℃ ~ +85 ℃
Restricted Operating Temperature	‑40 ℃ ~ +90 ℃
Certifications	CE, R&TTE, GCF, FCC, PTCRB, IC

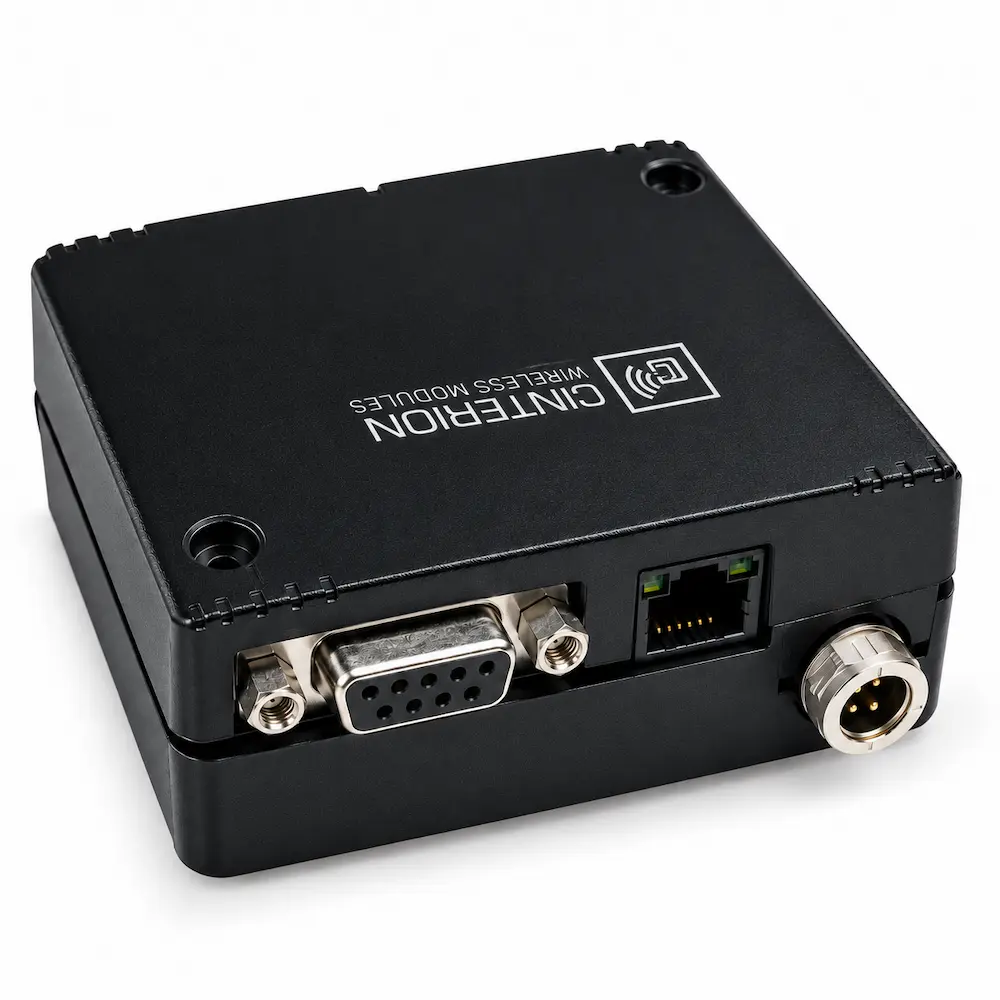

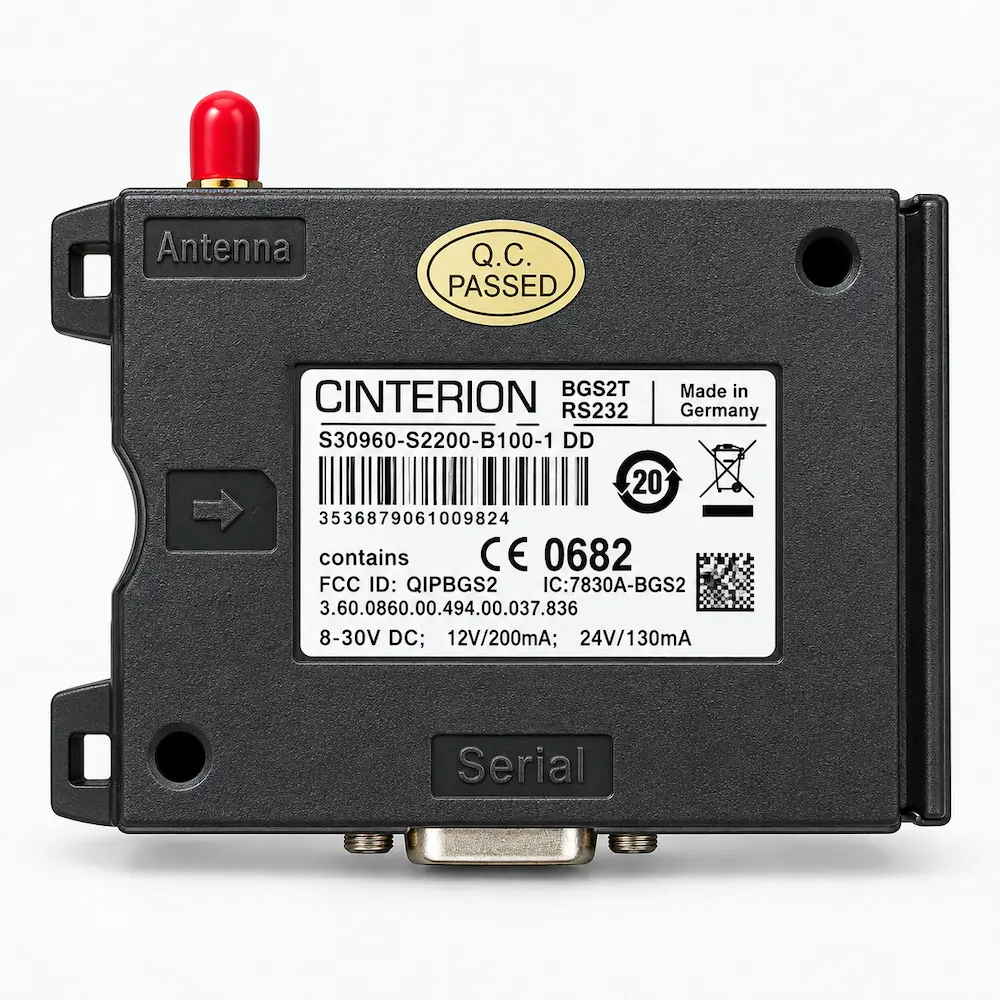

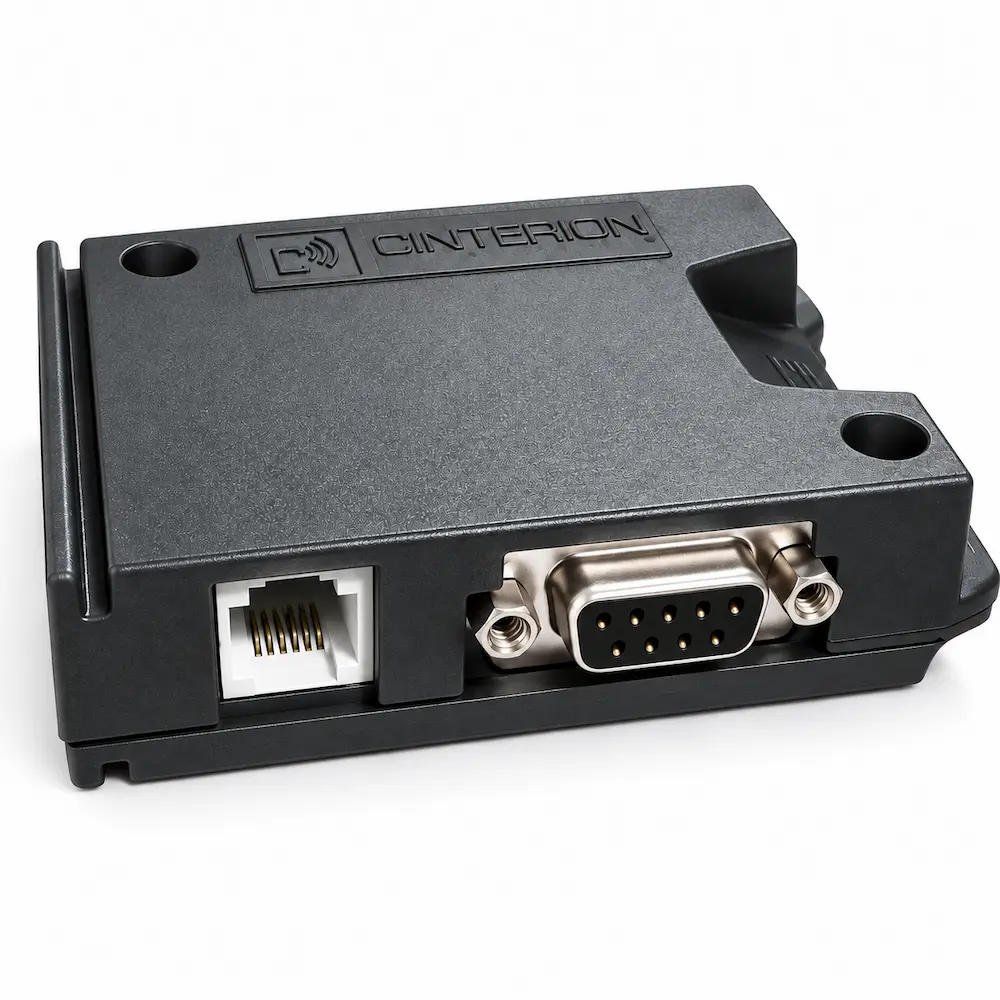

Product Overview

This is an industrial‑grade 2G M2M wireless terminal based on Cinterion BGS2 core module. It supports quad‑band GSM/GPRS cellular network, built‑in TCP/IP protocol stack, provides rich internet services including FTP, HTTP, SMTP, POP3. Equipped with standard RS232 interface, supports AT command control, SMS, CSD fax transmission. Featuring wide input voltage, compact dimension, low‑power consumption and extreme wide industrial temperature range, it supports flexible mounting, designed for M2M, industrial IoT and remote data transmission applications.

Product Specifications

Network & Wireless
Module	Cinterion BGS2
Network	GSM / GPRS
BGS2T-E(E8)	900 / 1800 MHz
BGS2T-W	850 / 900 / 1800 / 1900 MHz
GPRS	Multi-slot Class 10
Mobile Station	Class B
Output Power	2 W (850/900 MHz); 1 W (1800/1900 MHz)

Data Communication
GPRS Downlink	Max. 85.6 kbps
GPRS Uplink	Max. 42.8 kbps
CSD	Supported
USSD	Supported
Fax	Group 3, Class 1 & 2
Control	AT Commands

SMS
SMS Mode	Text / PDU Mode
Cell Broadcast	Supported
SIM Toolkit	Release 99

Internet Services
TCP/IP Stack	Access via AT Commands
TCP	Client / Server
UDP	Client
FTP / HTTP	Supported
SMTP / POP3	Supported
DNS / ICMP	Supported
Transparent Mode	Supported

Interfaces
Serial Interface	RS232, V.24 / V.28
RS232 Connector	D-sub 9-pin Female
RS485 Version	6-pin Header (Alternative Version)
SIM Interface	Mini-SIM, 1.8 V / 3.0 V
Antenna	SMA Female
Power Connector	6-pole Western Jack (RS232 Version)
Status LEDs	Supported

Electrical & Mechanical
Input Voltage	8–30 V DC
Normal Temperature	-30°C to +85°C
Restricted Temperature	-40°C to +90°C
Dimensions	80 × 55 × 23 mm (Excluding Connectors)
Weight	65 g
Mounting	Flexible Mounting / Cable Fixation
